Product Overview
CAGRI Bearings is a premier supplier of Rod End and Spherical Plain Bearings. These crucial, high‑precision articulating connectors serve a core function in the mechanical transmission field: achieving multi‑dimensional angular compensation, low‑friction rotation, and reciprocating oscillating motion transmission. Consequently, they are widely deployed in equipment requiring dynamic attitude adjustment.
In terms of classification, Rod End Bearings are primarily divided into Female Thread (e.g., SA series) and Male Thread (e.g., SI series), with derived sub‑types—such as left‑hand thread and lock‑nut variants—available for specialized scenarios. Meanwhile, Spherical Plain Bearings are categorized into:
Open Type (e.g., GE series)
Double Sealed Type (e.g., GE‑2RS series)
Lubrication Groove & Hole Type (e.g., GEEW series)
Furthermore, they are subdivided by structural characteristics into two major categories: self‑lubricating and periodically lubricated types.
With regard to standards and precision, all models are fully compatible with international benchmarks—including SAE AS81820, ISO 12240, and DIN 40822. Precision grades range from P0 (normal) to P5 (high), with P5 and P6 grades commonly employed in industrial automation and aerospace applications. Additionally, bore diameters span from 2 mm (for precision instruments) to over 300 mm (for large construction machinery).
Finally, material selection is highly flexible. The outer ring is predominantly manufactured from high‑carbon chromium bearing steel GCr15 (quenched and tempered, hardness HRC 60‑64) or stainless steel 304/316 for corrosion‑resistant scenarios. The inner ring is matched with tin‑bronze bushings, copper‑alloy + PTFE self‑lubricating composites, phosphated steel, and other options. For extreme working conditions—such as high temperatures exceeding 200 °C or strong corrosive environments—Inconel alloy or ceramic materials can be selected to fully satisfy requirements for wear resistance, impact resistance, corrosion resistance, and high‑temperature tolerance.

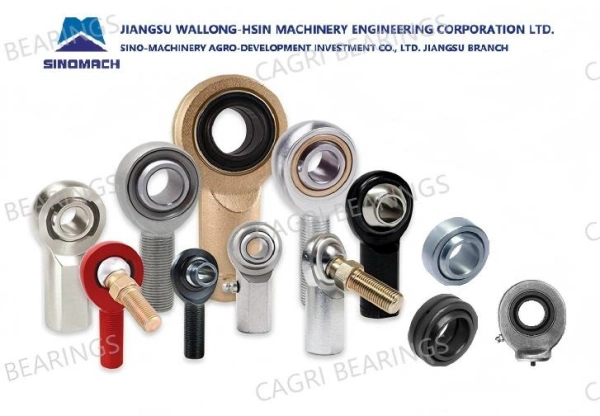

What is Rod End and Spherical Plain Bearings?
Rod End and Spherical Plain Bearings are, in essence, low‑friction motion transmission components built around a spherical contact interface. Their core design logic relies on the precise cooperation between the inner ring’s spherical surface and the outer ring’s corresponding spherical surface. This architecture enables large‑angle deflection—up to 15°–30° for Rod End Bearings and 30°–45° for Spherical Plain Bearings—while simultaneously bearing radial, axial, or combined loads. As a result, the bearings effectively compensate for installation deviations, vibration‑induced deformation, and displacement errors caused by thermal expansion and contraction during equipment operation.
In terms of application, the two bearing types complement one another while each maintaining a distinct focus:
Rod End Bearings, featuring a threaded connection structure, are particularly suited for end connections of linkages, control systems, and transmission rods. Typical applications span:
Automotive industry – suspension control arms, steering tie rods, transmission shift linkages, shock absorber connection ends.
Aerospace – aircraft control stick joints, landing gear retraction mechanisms, satellite attitude control linkages.
Industrial automation – robotic arm end effectors, linear module connection joints, conveyor line steering mechanisms.
Medical equipment – rehabilitation equipment joints, surgical instrument transmission rods.
Adapted core components include hydraulic piston rods, servo motor output shafts, gear rack mechanisms, and ball screw assemblies.
On the other hand, Spherical Plain Bearings offer stronger load‑bearing capacity and excel in heavy‑load, low‑speed scenarios. They are widely deployed in:
Construction machinery – excavator hydraulic cylinder piston rods, crane luffing arm joints, loader steering knuckles.
Energy equipment – wind turbine yaw system joints, pitch mechanism bearings, hydraulic turbine governor link joints.
Rail transit – train bogie axle box bearings, brake system swing joints.
Agricultural machinery – tractor suspension lifting mechanisms, harvester reel joints, seeder adjustment linkages.
Adapted core components for this type include large hydraulic actuators, heavy‑duty transmission shafts, swing robotic arms, and vibrating screen eccentric shafts.

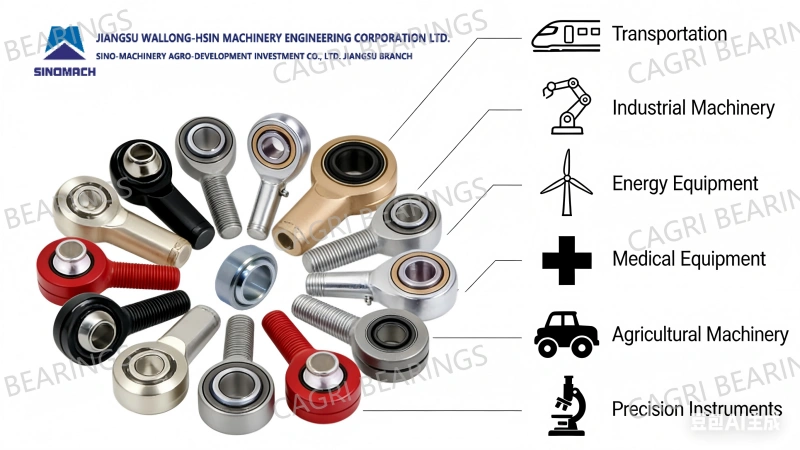

Across both categories, these bearings jointly serve seven core fields—transportation, industrial manufacturing, energy and power, aerospace, medical equipment, agricultural machinery, and precision instruments. They have become key components for ensuring stable equipment operation, improving transmission efficiency, and extending service life.

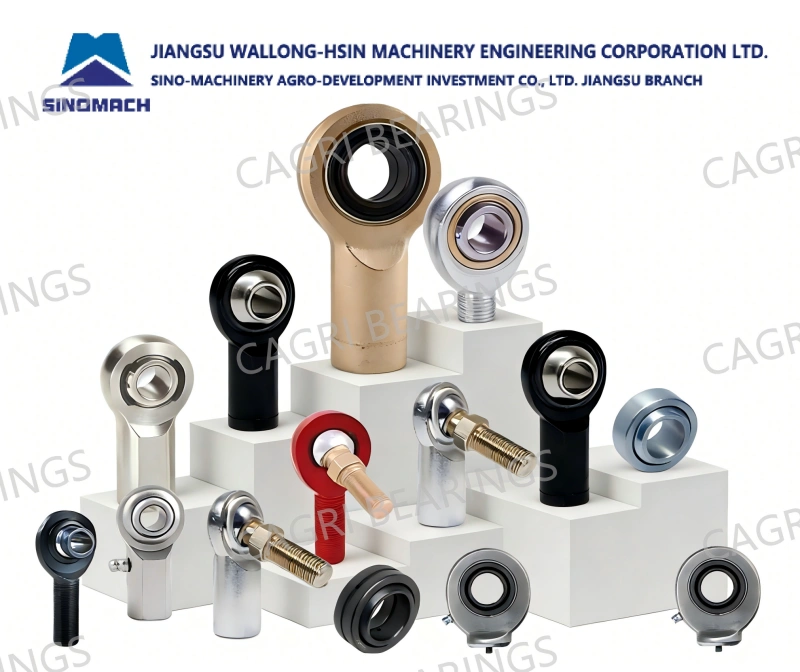

CAGRI EMQ Ball Bearing Advantages
With years of industry experience, CAGRI has built four core competitive advantages in Rod End and Spherical Plain Bearings through continuous technological innovation and strict quality control. These pillars have established a global brand image defined by “high precision, high reliability, and high adaptability.”
Ultimate Wear‑Resistant Self‑Lubricating Technology
First, CAGRI exclusively adopts a “PTFE + carbon fiber + nano‑ceramic particle” composite self‑lubricating bushing. Compared with traditional single‑component PTFE, this material improves wear resistance by 50% and achieves a friction coefficient as low as 0.03–0.05—significantly lower than the 0.1–0.15 typical of ordinary bearings. Consequently, it enables lifelong maintenance‑free operation or an ultra‑long lubrication cycle exceeding 10,000 hours. Moreover, the technology operates stably in harsh environments—including dust, mud, high temperature (−50 °C to 250 °C), and humidity—substantially reducing equipment maintenance costs and downtime.
Super Load‑Bearing and Impact‑Resistant Structure
Second, the outer ring is manufactured through an integrated process of “forging + integral quenching + precision grinding,” resulting in finer grain structure, a 30% increase in impact strength, and a stable hardness of HRC 62–64. Additionally, the inner ring utilizes a bimetallic composite structure—combining a bearing‑steel base with a wear‑resistant liner—delivering a load capacity 20%–30% above the industry average. Specifically, the radial load capacity reaches 200 MPa, while the axial load capacity reaches 150 MPa. As a result, these bearings easily withstand heavy‑load, frequent start‑stop, and impact scenarios such as excavation operations in construction machinery or wind turbine gust impacts.
Micron‑Level Precision Control and Consistency
Third, CAGRI employs German‑imported CNC machining centers and coordinate measuring machines with a measurement accuracy of ±0.001 mm. Consequently, key‑dimension tolerances—including spherical radius, fit clearance, and thread precision—are controlled within ±0.005 mm, far exceeding ISO standard requirements. Furthermore, automated production lines and batch traceability systems ensure dimensional consistency exceeding 99.5% across same‑model products. This effectively reduces the difficulty of equipment installation and commissioning while improving the motion precision and stability of the transmission system.
Full‑Scenario Customized Solutions
Finally, CAGRI provides full‑dimensional customization—spanning material, structure, size, and function—to address the unique requirements of diverse industries:
Material customization covers high‑temperature alloys (Inconel 718), corrosion‑resistant stainless steel (316L), and ceramic coatings.
Structural customization offers special threads (left‑hand, fine thread), dust covers/sealing rings, and integrated sensors for temperature and vibration monitoring.
Size customization supports non‑standard bore diameters and lengths, from a minimum bore of 1 mm for precision instruments to a maximum of 500 mm for large equipment.
In addition, value‑added services—including installation guidance, working‑condition simulation testing, and life prediction—are provided. Therefore, CAGRI Rod End and Spherical Plain Bearings perfectly adapt to the personalized demands of niche scenarios and high‑end equipment.
Application
Transportation | |
Automotive Industry | Suspension control arms, steering tie rods, transmission shift linkages, shock absorber connection ends, chassis stabilizer bar joints |
Rail Transit | Train bogie joints, brake system swing linkages, door opening/closing mechanisms, traction system connection ends |
Marine Equipment | Propulsion system drive shaft joints, steering gear control mechanisms, deck machinery linkages, navigation equipment adjustment joints |
Aerospace | Aircraft control stick joints, landing gear retraction mechanisms, engine linkages, satellite attitude control linkages, rocket propulsion system joints |
Industrial Machinery | |
Automation & Robotics | Industrial robot joints, robotic arm end effectors, linear module connectors, conveyor line steering mechanisms |
Machine Tools | Spindle swing mechanisms, worktable adjustment linkages, turret steering joints, hydraulic fixture connection ends |
Hydraulic Machinery | Hydraulic cylinder piston rods, hydraulic valve control levers, hydraulic motor connection joints, high-pressure oil pipe connectors |
General Machinery | Compressor connecting rod joints, pump swing mechanisms, fan adjustment linkages, printer roller joints |
Energy Equipment | |
Wind Power | Wind turbine yaw system joints, pitch mechanism bearings, nacelle shock absorption connection ends, tower adjustment linkages |
Hydropower | Hydraulic turbine governor link joints, generator rotor connection ends, gate opening/closing mechanism joints |
Solar Energy Equipment | Solar panel tracking system joints, condenser adjustment linkages, solar panel angle adjustment connectors |
Nuclear Energy Equipment | Reactor control rod drive mechanism joints, cooling system circulation pump linkages, containment seal mechanism connectors |
Medical Equipment | |
Rehabilitation Equipment | Wheelchair joints, prosthetic connectors, rehabilitation trainer swing linkages, massage chair robotic arm joints |
Surgical Instruments | Minimally invasive surgical instrument transmission rods, operating table adjustment joints, medical robot joints |
Agricultural Machinery | |
Farming Machinery | Tractor suspension lifting mechanisms, harvester reel joints, seeder row spacing adjustment linkages |
Irrigation Equipment | Sprinkler rotation joints, drip irrigation system adjustment linkages, water pipe steering connectors |
Harvesting Machinery | Combine harvester header adjustment joints, thresher transmission linkages, straw returning machine swing mechanisms |
Precision Instruments | |
Electronic Equipment | Semiconductor equipment robotic arm joints, lithography machine adjustment linkages, testing instrument swing mechanisms |
Measuring Equipment | Coordinate measuring machine motion joints, laser rangefinder adjustment linkages, precision balance swing connectors |
