Professional Linear Guideway Supplier – CAGRI Bearings

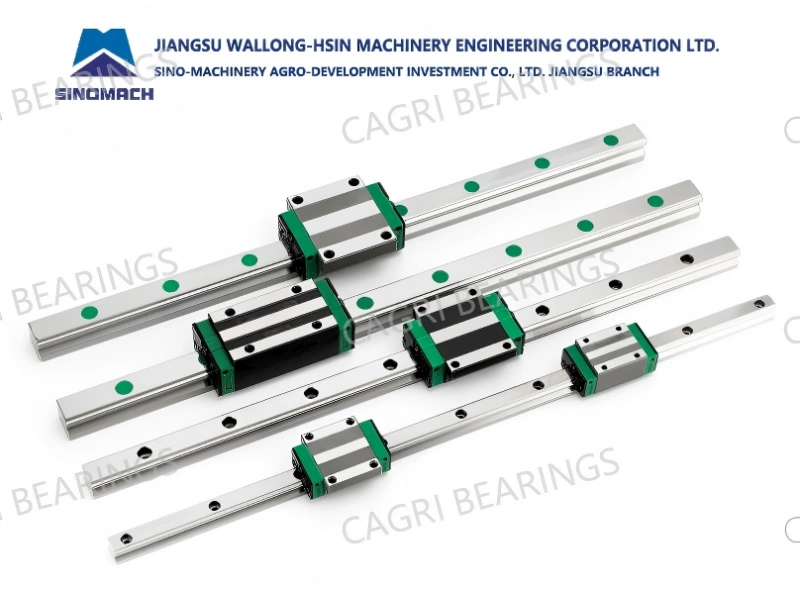

Product Overview

CAGRI Bearings is a professional linear guideway supplier offering high-precision linear motion components for industrial automation, CNC machinery, robotics, and semiconductor equipment. Specifically, our linear guideway is a precision bearing designed to provide smooth, accurate, and reliable linear movement across a wide range of demanding applications.

Key Features and Advantages

First and foremost, CAGRI linear guideways feature a compact structure with recirculating steel balls or rollers between the rail and the block. Consequently, this design significantly reduces friction, minimizes wear, and ensures long-term operational stability.

In terms of materials, our linear guideways are manufactured from high-quality GCr15 bearing steel. In addition, they undergo precision grinding and advanced heat treatment processes. As a result, they achieve high accuracy grades (P/H grades) and excellent load capacity.

Furthermore, our linear guideways are available in various sizes and configurations. For example, we offer standard rails, flanged blocks, and custom lengths to meet diverse customer requirements. Moreover, we support OEM/ODM projects with tailored specifications.

Product Specifications and Quality Standards

Regarding specifications, CAGRI linear guideways are available in multiple series including the SGR, SGL, and HGL series. Additionally, we offer both standard (P grade) and high-precision (H grade) options. For more details, please refer to our technical data sheets or contact our engineering team.

In terms of size range, we supply linear guideways with rail widths from 15mm to 65mm, block lengths up to 200mm, and customized rail lengths up to 6,000mm. Notably, all products are manufactured with strict dimensional control and surface finish quality.

All CAGRI linear guideways comply with ISO 12090-1 and JIS B 1192 international standards. Furthermore, our manufacturing facility is ISO 9001:2015 certified, ensuring consistent quality across all production batches.

Additionally, every linear guideway undergoes rigorous inspection—including dimensional measurement, hardness testing, and running noise evaluation—before shipment. As a result, customers can rely on our products for consistent performance and long service life.

Applications Across Industries

Machine Tool Industry

Metal Cutting Machine Tools

CNC machining centers, CNC lathes, milling machines, grinders, boring machines, gear cutting machines, EDM machines

Forming Machine Tools

Punching machines, bending machines, shearing machines, drawing machines, extrusion machines, powder molding machines

Automation & Robotics Industry

Industrial Robots

Multi-joint robots, SCARA robots, Delta robots, collaborative robots, palletizing robots

Automation Equipment

Linear modules, electric sliding tables, manipulators, conveyor lines, sorters, assembly workstations

Electronic Manufacturing Industry

Semiconductor Equipment

Wafer cutting machines, lithography machines, etching machines, semiconductor packaging equipment, probers

Electronic Assembly Equipment

PCB drilling machines, chip mounters, reflow ovens, AOI inspection equipment, lithium battery pole piece cutting machines, battery assembly lines

Automotive Manufacturing Industry

Automotive Production Lines

Welding production line conveying equipment, painting production line robotic arms, assembly production line positioning mechanisms, automotive parts processing machine tools

Automotive Components

Car seat adjustment mechanisms, sunroof slide rails, electric tailgate guide rails, gearbox shift mechanisms, steering system guide components

Medical Equipment Industry

Diagnostic Equipment

CT machines, Magnetic Resonance Imaging (MRI) equipment, ultrasonic diagnostic instruments, biochemical analyzers, blood analyzers

Therapy & Rehabilitation Equipment

Surgical robots, radiotherapy equipment, infusion pumps, rehabilitation training equipment, prosthetic joint guide mechanisms

Logistics & Warehousing Industry

Logistics Conveying Equipment

AGV trolleys, RGV rail cars, intelligent sorting lines, conveyors, stackers, automated warehouse shelf moving mechanisms

Aerospace Industry

Aerospace Equipment Manufacturing

Aircraft component processing machine tools, satellite component assembly equipment, rocket engine test bench guide mechanisms

Aerospace Onboard Equipment

Aircraft landing gear guide mechanisms, avionics equipment slide rails, satellite attitude adjustment mechanisms, UAV flight control systems

Printing & Packaging Industry

Printing Machinery

Digital printers, gravure printers, flexographic printers, screen printers, label printers

Packaging Machinery

Automatic packaging machines, sealing machines, labeling machines, wrapping machines, palletizing packaging production lines, food packaging equipment

New Energy Industry

Photovoltaic Equipment

PV module string welders, laminators, edge trimmers, PV cell inspection equipment

Wind Power Equipment

Wind turbine blade adjustment mechanisms, nacelle guide components, wind power gearbox guide mechanisms

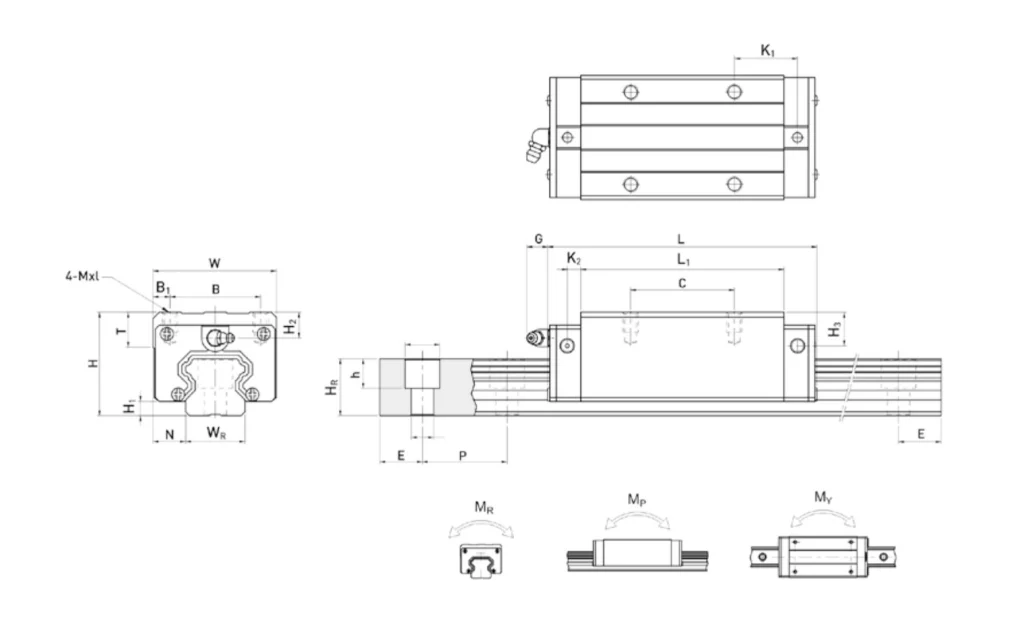

Detailed Specifications

Model No.

Dimensions of

Assembly (mm)

mounting

Bolt for Rail

Basic Dynamic

Load Rating

Basic Static

Load Rating

Static Rated Moment

Weight

H

H1

N

(mm)

C(kN)

CO(kN)

MR

kN-m

MP

kN-m

M

YkN-m

Block

kg

Rail

kg/m

HGH15CA

28

4.3

9.5

M4x16

11.38

16.97

0.12

0.10

0.10

0.18

1.45

HGH20CA

30

4.6

12

M5x16

17.75

27.76

0.27

0.20

0.20

0.30

2.21

HGH20HA

21.18

35.90

0.35

0.35

0.35

0.39

HGH25CA

40

5.5

12.5

M6x20

26.48

36.49

0.42

0.33

0.33

0.51

3.21

HGH25HA

32.75

49.44

0.56

0.57

0.57

0.69

HGH30CA

45

6

16

M8x25

38.74

52.19

0.66

0.53

0.53

0.88

4.47

HGH30HA

42.27

69.16

0.88

0.92

0.92

1.16

HGH35CA

55

7.5

18

M8x25

49.52

69.16

1.16

0.81

0.81

1.45

6.30

HGH35HA

60.21

91.63

1.54

1.40

1.40

1.92

HGH45CA

70

9.5

20.5

M12x35

77.57

102.71

1.98

1.55

1.55

2.73

10.41

HGH45HA

94.54

136.46

2.63

2.68

2.68

3.61

HGH55CA

80

13

23.5

M14x45

114.44

148.33

3.69

2.64

2.64

4.17

15.08

HGH55HA

139.35

196.20

4.88

4.57

4.57

5.49

HGH65CA

90

15

31.5

M16x50

163.63

215.33

6.65

4.27

4.27

7.00

21.18

HGH65HA

208.36

303.13

9.38

7.38

7.38

9.82

Model No.

Dimensions of Black (mm)

Dimensions of Rail (mm)

W

B

B1

C

L1

L

K1

K2

G

Mxl

T

H2

H3

WR

HR

D

h

d

P

E

HGH15CA

34

26

4

26

39.4

61.4

10

4.85

5.3

M4x5

6

7.95

7.7

15

15

7.5

5.3

4.5

60

20

HGH20CA

44

32

6

36

50.5

77.5

12.25

6

12

M5x6

8

6

6

20

17.5

9.5

8.5

6

60

20

HGH20HA

50

65.2

92.2

12.6

HGH25CA

48

35

6.5

35

58

84

15.7

6

12

M6x8

8

10

9

23

22

11

9

7

60

20

HGH25HA

50

78.6

104.6

18.5

HGH30CA

60

40

10

40

70

97.4

20.25

6

12

M8x10

8.5

9.5

13.8

28

26

14

12

9

80

20

HGH30HA

60

93

120.4

21.75

HGH35CA

70

50

10

50

80

112.4

20.6

7

12

M8x12

10.2

16

19.6

34

29

14

12

9

80

20

HGH35HA

72

105.8

138.2

22.5

HGH45CA

86

60

13

60

97

139.4

23

10

12.9

M10x17

16

18.5

30.5

45

38

20

17

14

105

22.5

HGH45HA

80

128.8

171.2

28.9

HGH55CA

100

75

12.5

75

117.7

166.7

27.35

11

12.9

M12x18

17.5

22

29

53

44

23

20

16

120

30

HGH55HA

95

155.8

204.8

36.4

HGH65CA

126

76

25

70

144.2

200.2

43.1

14

12.9

M16x20

25

15

15

63

53

26

22

18

150

35

HGH65HA

120

203.6

259.6

47.8

Note: 1kgf=9.81N

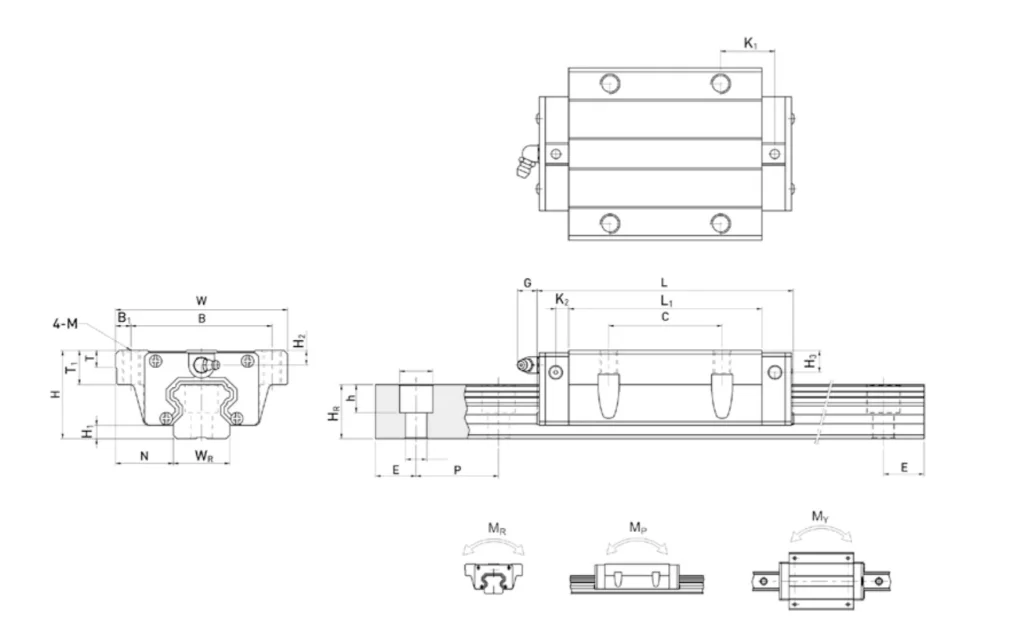

Model No.

Dimensions of

Assombly( mm )

Mounting

Bolt for Rail

Basic Dynamic

Load Rating

Basic Static

Load Rating

Static Rated Moment

Weight

MR

kN-m

MP

kN-m

MY

kN-m

Block

kg

Rail

kg/m

H

H1

N

( mm )

C(kN)

CO(kN)

HGW15CC

24

4.3

16

M4x16

11.38

16.97

0.12

0.10

0.10

0.17

1.45

HGW20CC

30

4.6

21.5

M5x16

17.75

27.76

0.27

0.20

0.20

0.40

2.21

HGW20HA

21.18

35.90

0.35

0.35

0.35

0.52

HGW25CC

36

5.5

23.5

M6x20

26.48

36.49

0.42

0.33

0.33

0.59

3.21

HGW25HA

32.75

49.44

0.56

0.57

0.57

0.80

HGW30CC

42

6

31

M8x25

38.74

52.19

0.66

0.53

0.53

1.09

4.47

HGW30HA

47.27

69.16

0.88

0.92

0.92

1.44

HGW35CC

48

7.5

33

M8x25

49.52

69.16

1.16

0.81

0.81

1.56

6.30

HGW35HA

60.21

91.63

1.54

1.40

1.40

2.06

HGW45CC

60

9.5

37.5

M12x35

77.57

102.71

1.98

1.55

1.55

2.79

10.41

HGW45HA

94.54

136.46

2.63

2.68

2.68

3.69

HGW55CC

70

13

43.5

M14x45

114.44

148.33

3.69

2.64

2.64

4.52

15.08

HGW55HA

139.35

196.20

4.88

4.57

4.57

5.96

HGW65CC

90

15

53.5

M16x50

163.63

215.33

6.65

4.27

4.27

9.17

21.18

HGW65HA

208.36

303.13

9.38

7.38

7.38

12.89

Model No.

Dimensions of Black ( mm )

Dimensions of Rail ( mm )

W

B

B1

C

L1

L

K1

K2

G

M

T

T1

H2

H3

WR

HR

D

h

d

P

E

HGW15CC

47

38

4.5

30

39.6

61.4

8

4.85

5.3

M5

6

8.9

3.95

3.7

15

15

7.5

5.3

4.5

60

20

HGW20CC

63

53

5

40

50.5

77.5

10.25

6

12

M6

8

10

6

6

20

17.5

9.5

8.5

6

60

20

HGW20HA

65.2

92.2

17.6

HGW25CC

70

57

6.5

45

58

84

10.7

6

12

M8

8

14

6

5

23

22

11

9

7

60

20

HGW25HA

78.6

104.6

21

HGW30CC

90

72

9

52

70

97.4

14.25

6

12

M10

8.5

16

6.5

10.8

28

26

14

12

9

80

20

HGW30HA

93

120.4

25.75

HGW35CC

100

82

9

62

80

112.4

14.6

7

12

M10

10.1

18

9

12.6

34

29

14

12

9

80

20

HGW35HA

105.8

138.2

27.5

HGW45CC

120

100

10

80

97

139.4

13

10

12.9

M12

15.1

22

8.5

20.5

45

38

20

17

14

105

22.5

HGW45HA

128.8

171.2

28.9

HGW55CC

140

116

12

95

117.7

166.7

17.35

11

12.9

M14

17.5

26.5

12

19

53

44

23

20

16

120

30

HGW55HA

155.8

204.8

36.4

HGW65CC

170

142

14

110

144.2

200.2

23.1

14

12.9

M16

25

37.5

15

15

63

53

26

22

18

150

35

HGW65HA

203.6

259.6

52.8

Note: 1kgf＝9.81N

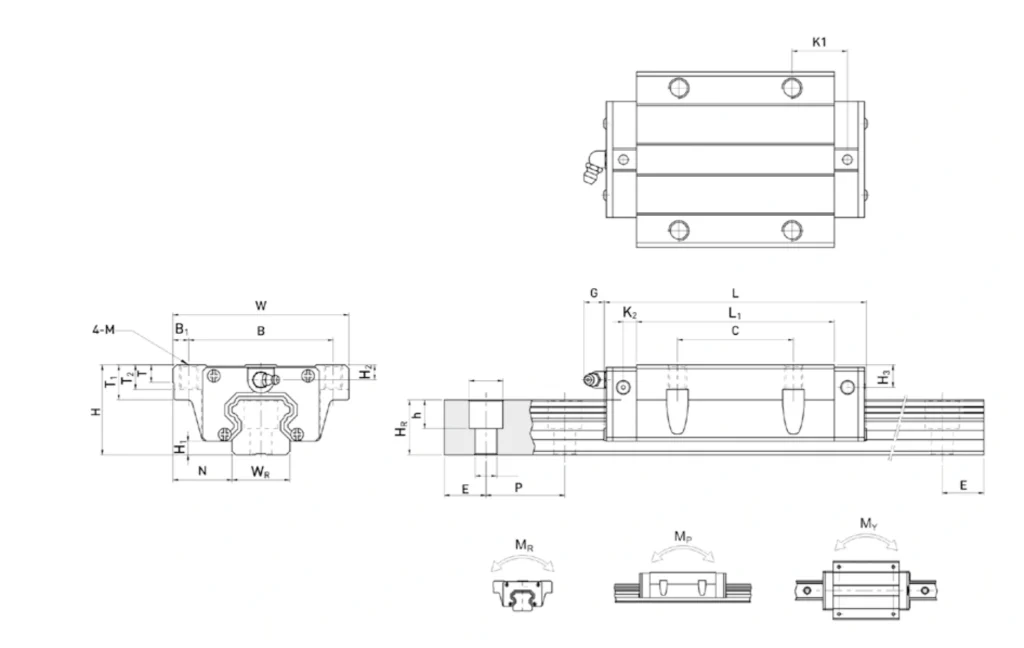

Model No.

Dimensions of

Assombly( mm )

Dimensions of Black ( mm )

H

H1

N

W

B

B1

C

L1

L

K1

K2

G

M

T

T1

H2

H3

HGW15CC

24

4.3

16

47

38

4.5

30

39.4

61.4

8

4.85

5.3

M5

6

8.9

3.95

3.7

HGW20CC

30

4.6

21.5

63

53

5

40

50.5

77.5

10.25

6

12

M6

8

10

6

6

HGW20HC

65.2

92.2

17.6

HGW25CC

36

5.5

23.5

70

57

6.5

45

58

84

10.7

6

12

M8

8

14

6

5

HGW25HC

78.6

104.6

21

HGW30CC

42

6

31

90

72

9

52

70

97.4

14.25

6

12

M10

8.5

16

6.5

10.8

HGW30HC

93

120.4

25.75

HGW35CC

48

7.5

33

100

82

9

62

80

112.4

14.6

7

12

M10

10.1

18

9

12.6

HGW35HC

105.8

138.2

27.5

HGW45CC

60

9.5

37.5

120

100

10

80

97

139.4

13

10

12.9

M12

15.1

22

8.5

20.5

HGW45HC

128.8

171.2

28.9

HGW55CC

70

13

43.5

140

116

12

95

117.7

166.7

17.35

11

12.9

M14

17.5

26.5

12

19

HGW55HC

155.8

204.8

36.4

HGW65CC

90

15

53.5

170

142

14

110

144.2

200.2

23.1

14

12.9

M16

25

37.5

15

15

HGW65HC

203.6

259.6

52.8

Dimensions of Rail ( mm )

Mounting

Bolt for Rail

Basic Dynamic

Load Rating

Basic Static

Load Rating

Static Rated Moment

Weight

MR

kN-m

MP

kN-m

MY

kN-m

Block

kg

Rail

WR

HR

D

h

d

P

E

( mm )

C(kN)

CO(kN)

kg/m

15

15

7.5

5.3

4.5

60

20

M4x16

11.38

16.97

0.12

0.10

0.10

0.17

1.45

20

17.5

9.5

8.5

6

60

20

M5x16

17.75

27.76

0.27

0.20

0.20

0.40

2.21

21.18

35.90

0.35

0.35

0.35

0.52

23

22

11

9

7

60

20

M6x20

26.48

36.49

0.42

0.33

0.33

0.59

3.21

32.75

49.44

0.56

0.57

0.57

0.80

28

26

14

12

9

80

20

M8x25

38.74

52.19

0.66

0.53

0.53

1.09

4.47

47.27

69.16

0.88

0.92

0.92

1.44

34

29

14

12

9

80

20

M8x25

49.52

69.16

1.16

0.81

0.81

1.56

6.30

60.21

91.63

1.54

1.40

1.40

2.06

45

38

20

17

14

105

22.5

M12x35

77.57

102.71

1.98

1.55

1.55

2.79

10.41

94.54

136.46

2.63

2.68

2.68

3.69

53

44

23

20

16

120

30

M14x45

114.44

148.33

3.69

2.64

2.64

4.52

15.08

139.35

196.20

4.88

4.57

4.57

5.96

63

53

26

22

18

150

35

M16x50

163.63

215.33

6.65

4.27

4.27

9.17

21.18

208.36

303.13

9.38

7.38

7.38

12.89

Note: 1kgf＝9.81N

More

FAQ

In conclusion, CAGRI Bearings is a trusted linear guideway supplier offering high-quality products, competitive pricing, and responsive technical support. Whether you need standard models or custom solutions, we are here to assist you.

Website：www.camcjsw-bearings.com SINO-MACHINERY AGRO-DEVELOPMENT INVESTMENT CO., LTD. JIANGSU BRANCH JIANGSU WALLONG-HSIN MACHINERY ENGINEERING CORPORATION LTD. TEL：+86-510-8273 6527(Business) +86-510-8270 1813(General) FAX：+86-510-8272 5039/ 8271 0822 E-MAIL：guchenglong@camcjsw.com camcjsw@camcjsw.com(General)
Contact Form Demo
en_USEN
en_USEN es_ESES pt_BRPT ru_RURU
